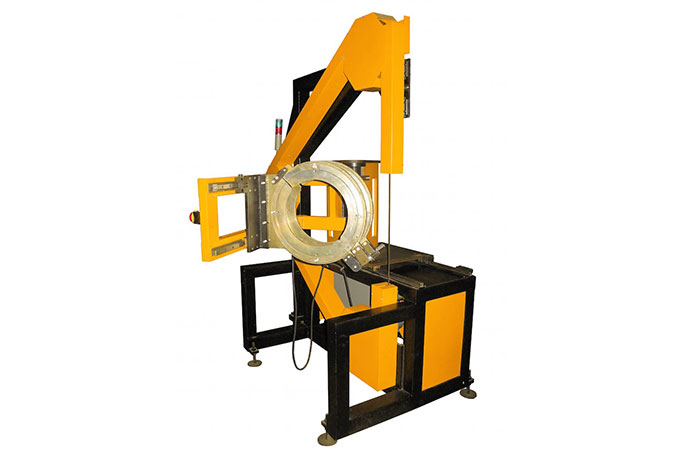

LJ630 arched surface pipe saw can cut branch pipe with specific radian while fabricating the reducing tee welding fittings in PE, PP or other thermoplastic material. Special band saw with required radius for welding reducing tee using butt welding machines. Cuts pipe segment end to the correct radius for outlet pipes 63mm to 630mm.
Parameter of LJ 630 Arched Surface Pipe Saw
MODEL | LJ630 |
Cutting Range | 400mm~630mm, PN4~PN20 |
Driver motor | 6.5KW |
u Range of arched radius | R80~400 |
u Cutting angle error | ≤1° |
u Max. line speed | 350m/min |
Voltage/Frequency | 3 phase 380Volts /415Volts, 50/60Hz |
N.W | 4000KGS |
