LHC 800 Pipe Saw
Plastic Pipe Welding & Cutting Machines
LHC800

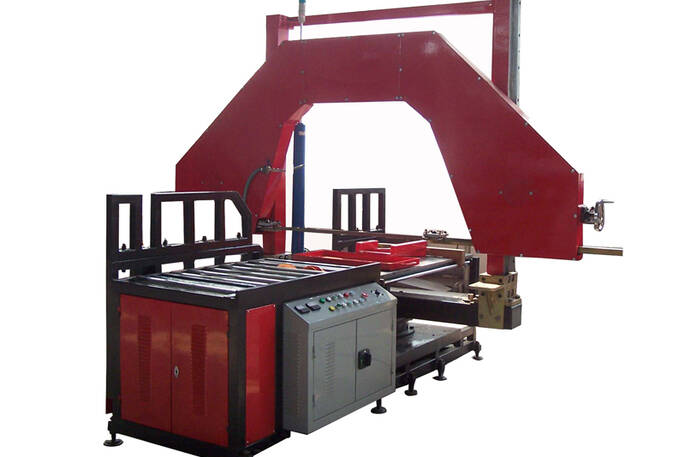

LHC 800 Pipe Saw

LHC800 hydraulically operated pipe saw specifically produced for the preparation of pipe segments in PE, PP and other thermoplastic materials, used for the production of Bends, Tees, Cross, Y and other fabrications. The lowering rate of the saw is hydraulically controlled, as are the strap clamps used to hold pipe segments. Capacity 90 to 800mm OD. The cutting angle is up to 67.5 degrees, use the Swedish saw blade and limited switch for safety.


Parameter of LHC 800 Pipe Saw


MODEL

LHC800

Cutting Range

0~800mm

Driver motor Power

2.2KW

Hydraulic unit power

1.5KW

Total power

3.7KW

u Max. line speed

195m/min

Voltage/Frequency

3 phase 380Volts/415/450Volts, 50/60Hz

N.W

4500KGS
